Two Six Auto parts

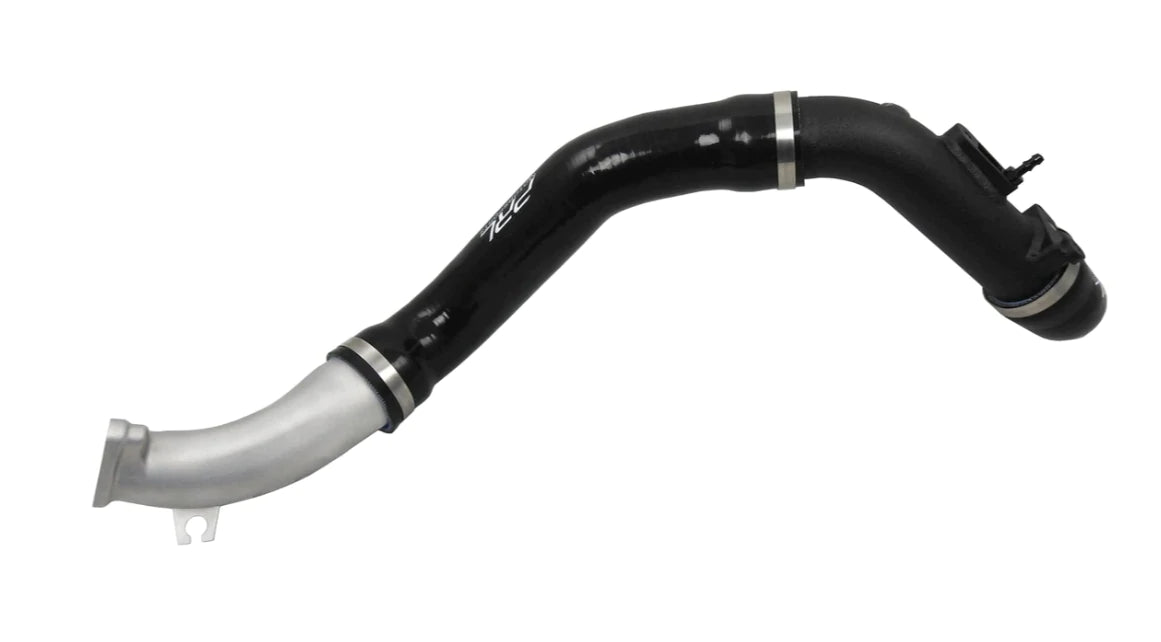

2017-2021 Honda Civic Type-R FK8 Intercooler Charge Pipe Upgrade Kit

Name: 2017-2021 Honda Civic Type-R FK8 Intercooler Charge Pipe Upgrade Kit
Brand: Two Six Auto parts
Price: 319.99 USD
Availability: InStock

$319.99 USD

Sale Sold out

Shipping calculated at checkout.

{"id":7359812567239,"title":"2017-2021 Honda Civic Type-R FK8 Intercooler Charge Pipe Upgrade Kit","handle":"2017-2021-honda-civic-type-r-fk8-intercooler-charge-pipe-upgrade-kit","description":"\u003cp align=\"left\" data-mce-fragment=\"1\"\u003eFits all 2017-2021 Civic Type-R FK8\u003cbr data-mce-fragment=\"1\"\u003eFits all variant models including RHD, International Models, Etc.\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003e\n\u003cspan face=\"Tahoma\" data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/h3\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eImportant Notes:\u003c\/h3\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eNO ECU CALIBRATION REQUIRED\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eCOMPATIBLE WITH ALL FACTORY LOCATION\/CONNECTION INTERCOOLERS - PRL MOTORSPORTS INTERCOOLER UPGRADE RECOMMENDED FOR OPTIMAL FITMENT \u0026amp; RESULTS\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cspan data-mce-fragment=\"1\"\u003eMINOR TRIMMING \u003cem data-mce-fragment=\"1\"\u003eMAY\u003c\/em\u003e\u003c\/span\u003e\u003cem data-mce-fragment=\"1\"\u003e \u003c\/em\u003e\u003cspan data-mce-fragment=\"1\"\u003eBE REQUIRED TO RADIATOR\/FAN SHROUD IF USING AFTERMARKET RADIATOR\u003c\/span\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/h3\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eTechnical Notes:\u003c\/h3\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\"\u003eOur charge pipe upgrade kit utilizes a smooth flowing, larger diameter cold-side for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool. 4-ply silicone couplers are used throughout our design for a couple of reasons:\u003c\/p\u003e\n\u003col data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eHeat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eStrength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Also, we have managed to melt the factory rubber hose a handful of times during our track adventures on our shop car. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eSmooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eOptimal fitment: We have found that the factory rubbers hoses don't offer the most desirable fitment, especially when paired with an aftermarket radiator. Our silicone hose(s) offer even better fitment than factory.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eKit Includes:\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(1) Cast Aluminum Intercooler Outlet Piece\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(1) Aluminum Charge Pipe, Powdercoated Wrinkle-Black w\/ Vacuum Port(s) \u0026amp; 1\/8\" NPT Methanol Injection Bung\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(1) Charge Pipe Bracket\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(2) M5 x 0.80 x 10mm BHCS Bolt\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(3) 4-ply silicone couplers\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(6) 304 Stainless Steel Lined clamps\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eAll hardware needed for install\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2022-06-07T17:15:38-07:00","created_at":"2022-06-07T17:15:37-07:00","vendor":"Two Six Auto parts","type":"","tags":["CIVIC TYPE R","FK8"],"price":31999,"price_min":31999,"price_max":31999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42297492897991,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2017-2021 Honda Civic Type-R FK8 Intercooler Charge Pipe Upgrade Kit","public_title":null,"options":["Default Title"],"price":31999,"weight":4536,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.12PM.webp?v=1654647339","\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.38.06PM.webp?v=1654647339","\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.46PM.webp?v=1654647339","\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.29PM.webp?v=1654647339"],"featured_image":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.12PM.webp?v=1654647339","options":["Title"],"media":[{"alt":null,"id":26710719103175,"position":1,"preview_image":{"aspect_ratio":1.927,"height":370,"width":713,"src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.12PM.webp?v=1654647339"},"aspect_ratio":1.927,"height":370,"media_type":"image","src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.12PM.webp?v=1654647339","width":713},{"alt":null,"id":26710719135943,"position":2,"preview_image":{"aspect_ratio":1.383,"height":864,"width":1195,"src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.38.06PM.webp?v=1654647339"},"aspect_ratio":1.383,"height":864,"media_type":"image","src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.38.06PM.webp?v=1654647339","width":1195},{"alt":null,"id":26710719168711,"position":3,"preview_image":{"aspect_ratio":1.679,"height":703,"width":1180,"src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.46PM.webp?v=1654647339"},"aspect_ratio":1.679,"height":703,"media_type":"image","src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.46PM.webp?v=1654647339","width":1180},{"alt":null,"id":26710719201479,"position":4,"preview_image":{"aspect_ratio":1.808,"height":642,"width":1161,"src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.29PM.webp?v=1654647339"},"aspect_ratio":1.808,"height":642,"media_type":"image","src":"\/\/26autoparts.com\/cdn\/shop\/products\/ScreenShot2022-03-30at2.37.29PM.webp?v=1654647339","width":1161}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp align=\"left\" data-mce-fragment=\"1\"\u003eFits all 2017-2021 Civic Type-R FK8\u003cbr data-mce-fragment=\"1\"\u003eFits all variant models including RHD, International Models, Etc.\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/p\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003e\n\u003cspan face=\"Tahoma\" data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003e\u003c\/span\u003e\u003c\/span\u003e\u003cbr data-mce-fragment=\"1\"\u003e\n\u003c\/h3\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eImportant Notes:\u003c\/h3\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003eNO ECU CALIBRATION REQUIRED\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eCOMPATIBLE WITH ALL FACTORY LOCATION\/CONNECTION INTERCOOLERS - PRL MOTORSPORTS INTERCOOLER UPGRADE RECOMMENDED FOR OPTIMAL FITMENT \u0026amp; RESULTS\u003c\/span\u003e\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cspan data-mce-fragment=\"1\"\u003eMINOR TRIMMING \u003cem data-mce-fragment=\"1\"\u003eMAY\u003c\/em\u003e\u003c\/span\u003e\u003cem data-mce-fragment=\"1\"\u003e \u003c\/em\u003e\u003cspan data-mce-fragment=\"1\"\u003eBE REQUIRED TO RADIATOR\/FAN SHROUD IF USING AFTERMARKET RADIATOR\u003c\/span\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/h3\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eTechnical Notes:\u003c\/h3\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\u003cbr data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp data-mce-fragment=\"1\"\u003eOur charge pipe upgrade kit utilizes a smooth flowing, larger diameter cold-side for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool. 4-ply silicone couplers are used throughout our design for a couple of reasons:\u003c\/p\u003e\n\u003col data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eHeat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eStrength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Also, we have managed to melt the factory rubber hose a handful of times during our track adventures on our shop car. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eSmooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eOptimal fitment: We have found that the factory rubbers hoses don't offer the most desirable fitment, especially when paired with an aftermarket radiator. Our silicone hose(s) offer even better fitment than factory.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ol\u003e\n\u003cdiv data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eKit Includes:\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003cul data-mce-fragment=\"1\"\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(1) Cast Aluminum Intercooler Outlet Piece\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(1) Aluminum Charge Pipe, Powdercoated Wrinkle-Black w\/ Vacuum Port(s) \u0026amp; 1\/8\" NPT Methanol Injection Bung\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(1) Charge Pipe Bracket\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(2) M5 x 0.80 x 10mm BHCS Bolt\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(3) 4-ply silicone couplers\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003e(6) 304 Stainless Steel Lined clamps\u003c\/li\u003e\n\u003cli data-mce-fragment=\"1\"\u003eAll hardware needed for install\u003c\/li\u003e\n\u003c\/ul\u003e"}

Product variants

Quantity

Fits all 2017-2021 Civic Type-R FK8
Fits all variant models including RHD, International Models, Etc.

Important Notes:

NO ECU CALIBRATION REQUIRED
COMPATIBLE WITH ALL FACTORY LOCATION/CONNECTION INTERCOOLERS - PRL MOTORSPORTS INTERCOOLER UPGRADE RECOMMENDED FOR OPTIMAL FITMENT & RESULTS
MINOR TRIMMING MAY BE REQUIRED TO RADIATOR/FAN SHROUD IF USING AFTERMARKET RADIATOR

Technical Notes:

Our charge pipe upgrade kit utilizes a smooth flowing, larger diameter cold-side for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool. 4-ply silicone couplers are used throughout our design for a couple of reasons:

Heat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.
Strength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Also, we have managed to melt the factory rubber hose a handful of times during our track adventures on our shop car. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).
Smooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.
Optimal fitment: We have found that the factory rubbers hoses don't offer the most desirable fitment, especially when paired with an aftermarket radiator. Our silicone hose(s) offer even better fitment than factory.

Kit Includes:

(1) Cast Aluminum Intercooler Outlet Piece
(1) Aluminum Charge Pipe, Powdercoated Wrinkle-Black w/ Vacuum Port(s) & 1/8" NPT Methanol Injection Bung
(1) Charge Pipe Bracket
(2) M5 x 0.80 x 10mm BHCS Bolt
(3) 4-ply silicone couplers
(6) 304 Stainless Steel Lined clamps
All hardware needed for install
